Example app

The Exponea Flutter SDK includes an example application you can use as a reference implementation. You can build and run the app, test Engagement features, and compare the code and behavior of your implementation with the expected behavior and code in the example app.

Prerequisites

You must have the following software installed to be able to build and run the example app:

• Flutter SDK
• Git
• Android Studio with a virtual or physical device set up to run the app on Android
• Xcode and CocoaPods with a virtual or physical device set up to run the app on iOS

👍

Follow Flutter's Get started guide if you are new to Flutter.

Build and run the example app

1. Clone the exponea-flutter-sdk repository on GitHub:
   Shell

   git clone https://github.com/exponea/exponea-flutter-sdk.git


2. Enter the example directory containing the example app:
   Shell

   cd exponea-flutter-sdk/example


3. To run the app on iOS:
   1. Run CocoaPods in the ios directory to install dependencies:
      Shell

      cd ios
      pod install
      cd ..


   2. Connect a virtual or physical iOS device.
   3. Run the app:
      Shell

      flutter run


4. To run the app on Android:
   1. Connect a virtual or physical Android device.
   2. Run the app:
      Shell

      flutter run --flavor gms


      Alternatively, use --flavor hms for Huawei devices without GooglePlay services but with HMS Core.

      👍

      If you use Visual Studio Code, you can create a launch configuration to use the flavor flag.

📘

To enable push notifications in the example app, you must also configure the Firebase integration or Huawei integration in the Exponea web app.

Navigate the example app

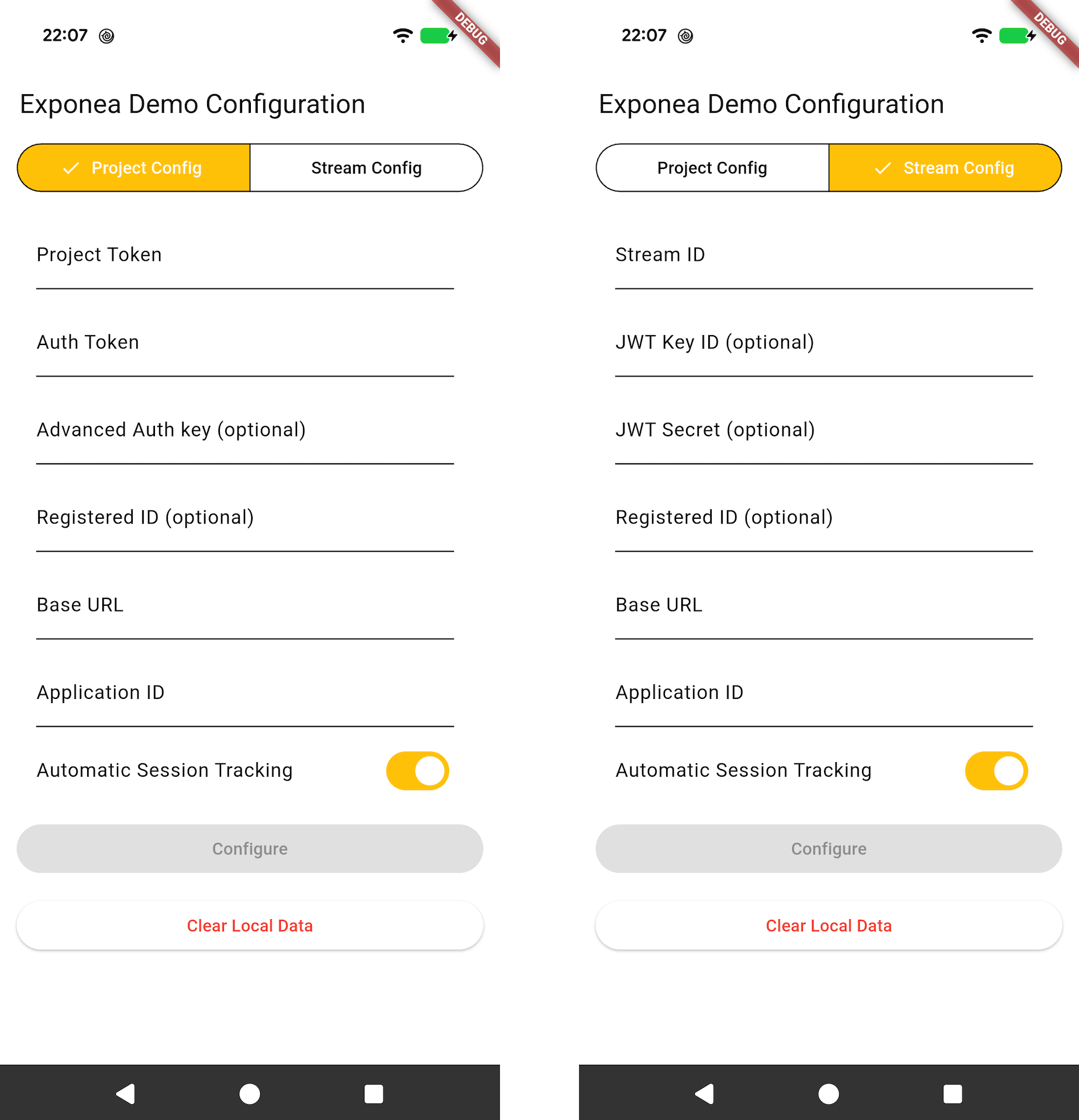

When you run the app in the simulator, you'll see the ConfigPage.

1. Enter your project token, API token, and API base URL.
2. Optionally, enter Application ID if your Engagement project supports multiple mobile apps. If you leave this blank, the SDK uses the default value "default-application". Learn more about configuration.
3. Optionally, disable Automatic Session Tracking using the switch (default enabled).
4. Then click Configure to initialize the SDK.

   config.dart

The HomePage provides several buttons to test the different SDK features.

home.dart

• In the Push events section, you can Request Push Authorization and check whether push notifications are Configured?.

• In the Customer section, you can get the customer's soft ID (Get Cookie), Identify the customer (using the hardcoded ID [email protected]), or Anonymize the customer.

• In the Fetch section, you can fetch the customer's Consents and Recommendations.

• In the Flush Mode section, you can Get and Set the flush mode, and trigger a manual Flush.

• In the Flush Period section, you can configure the flush period using the slider and the Set button.

• In the Track section, you can track an Event (a harcoded event event_name with some sample properties) and, if you disabled automatic session tracking, you can manually track Session Start and Session End.

• In the Trigger in-app messages by event section, you can track various test events you can use to trigger in-app messages while testing:

  • Modal (track a test_msg_modal event)
  • Fullscreen (track a test_msg_fullscreen event)
  • Slide-in (tracks a test_msg_slide event)
  • Alert (tracks a test_msg_alert event)

• In the Log Level section, you can Get the current log level.

• In the App Inbox section, you can access the App Inbox, Fetch all messages, Fetch first message, and Mark first as read.

• Using the In App CB Example Page button, you can access the InAppCbPage to test in-app content blocks. Use the placeholder IDs example_top and example_list for the corresponding placeholders. Use the placeholder IDs ph_x_example_iOS and ph_x_example_Android to test platform-specific content blocks in the placeholder labeled "platformSpecificPlaceholderId".

  in_app_cb_page.dart

Try out the different features in the app, then find the customer profile in the Engagement web app (under Data & Assets > Customers) to see the properties and events tracked by the SDK.

By default, the customer is tracked anonymously using a cookie soft ID. You can look up the cookie value in the logs and find the corresponding profile in the Engagement web app.

If you used the Identify button, the customer can be found in Engagement web app by the test email address ([email protected]).

📘

Refer to Customer Identification for more information on soft IDs and hard IDs.

Troubleshooting

If you encounter any issues running the example app, the following may help:

• In the example directory, run flutter clean, then flutter pub get.
• If the app doesn't start on Android, you may have forgotten to include the --flavor gms or --flavor hms flag.
